Hinnad sisaldavad käibemaksu 24%
Ühik: tk

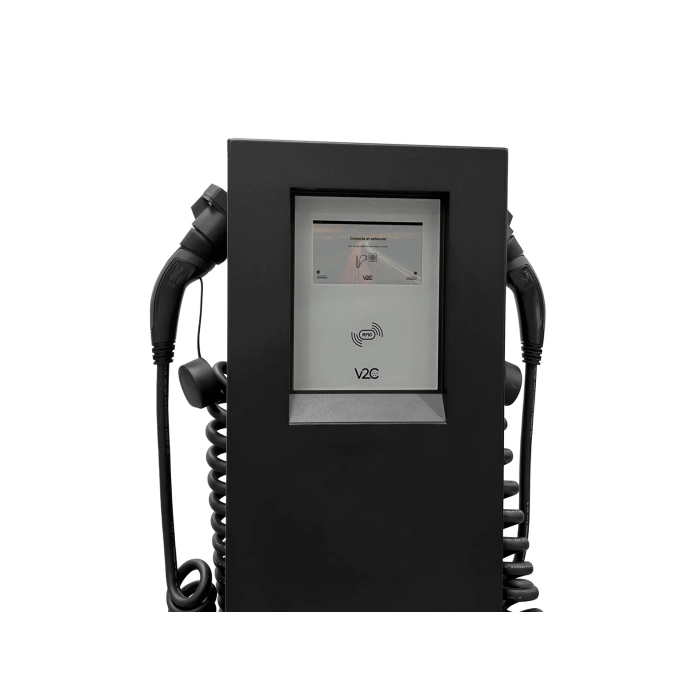

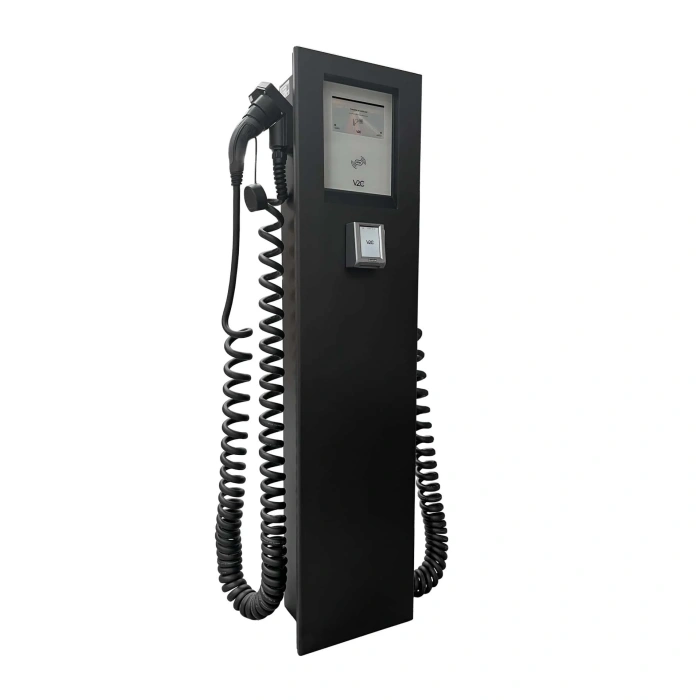

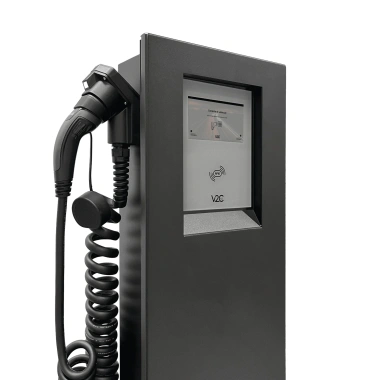

V2C POLE with spring cables (2x22kW) with 8” & 2000 Lumen Display is designed to be installed on the ground and used at office, or public areas. With top industry quality, great looks due to bright 8″ Display and effective anti-vandal protection. V2C Pole station is classified as fast Mode 3 charging station with ability to provide up to 44 kW of power using two Type 2 charging sockets.
8” DISPLAY – 2000 Lumen!
RFID authorization
OCPP communication system – compatible with CHRG Network management system
Anti-vandal steel
Up to 2×22 kW
MID meter
4G, Wifi, LAN connectivity

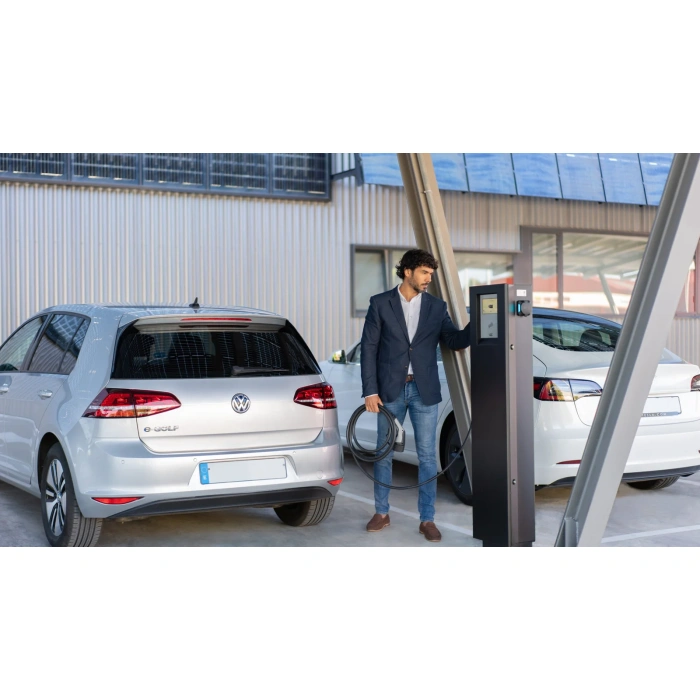

V2C POLE with spring cables- advanced yet cost effective solution for MODE 3, up to 2×22 kW EV charging. It can be installed on the ground and used in garages, parking lots and other public areas.
Electrical characteristics:
Conector type: cables / Type 2
Grid type: 230V / 400V
Maximum recharging intensity: 32A (per phase)
Maximum recharging power: 7,3kW o 22kW (per socket)
Configurable current: from 6 to 32 Amps
Nominal frequency: 50Hz / 60Hz
Protection index: IP54 / IK10
Residual current detection: AC 30mA / DC 6mA*2
Electrical protections per socket: type A differential and 40A circuit breaker.
Operating temperature: from -25º to 70º
Storage temperature: from -40º to 70º
